Project Image
  • Product Name :

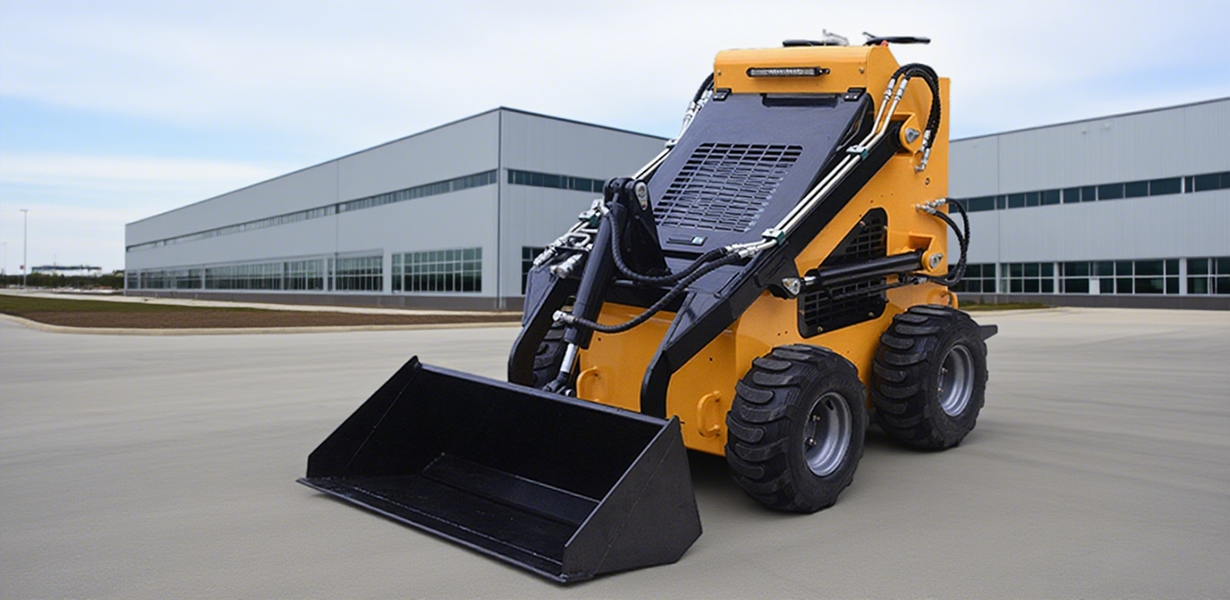

    skid loader 6

  • ENGINE MODEL :

    Rato twin-cylinder/Koop twin-cylinder/Briggs & Stratton

  • NET POWER :

    13.5 horsepower

  • Transport weight:

    _

  • OPERATING WEIGHT:

    900kg

Project Overview

Ultra-Compact Eco Warrior – The Space-Saving Performer

Redefining compact efficiency with industry-leading dimensions (ultra-slim 850mm width):

  • Green Power: 13.5HP eco-engine meets Euro 5-EPA standards while delivering 350KN lifting power - mighty performance in mini package.
  • Micro Footprint: 1.45m ultra-short length and 720mm narrow tracks conquer the tightest urban alleys and indoor spaces.
  • Precision Control: 0-6km/h variable speed with 114° maximum bucket articulation enables surgical-grade material handling.
  • Featherweight Champion: At just 900kg with 0.12m³ bucket capacity, protects delicate surfaces while working.

Ideal for: Historic district renovations, rooftop gardens, underground utilities, and narrow vineyard operations.

Specification Parameter and Working Environment

Basic Dimensions
Maximum Operating Height 2450mm Driving Roof Height (with AC) 1350mm
Departure Angle Ground Clearance 150mm
Wheelbase 850mm Length (without bucket) 1450mm
Length (with bucket) 2100mm Maximum Bucket Angle 27°
Unloading Height 1510mm Maximum Bucket Pin Height 1870mm
Loading Distance 450mm Unloading Angle 34°
Bucket Tilt Angle 114° Standard Bucket Width 900mm
Turning Radius Track Width 720mm
Vehicle Width 850mm
Engine
Engine Brand Rato twin-cylinder/Koop twin-cylinder/Briggs & Stratton Fuel Type
Cooling Method Power 13.5 horsepower
Torque Number of Cylinders 1
Displacement 420cc Engine Coolant
Fuel Tank Capacity 5L
Performance
Rated Working Load 200 Boom Lifting Capacity 350KN
Bucket Lifting Capacity Maximum Travel Speed 0-6km/h
Operating Weight 900kg Transport Weight
Hydraulic System Pressure 17-21bar Maximum Pump Flow
