Project Image
  • Product Name :

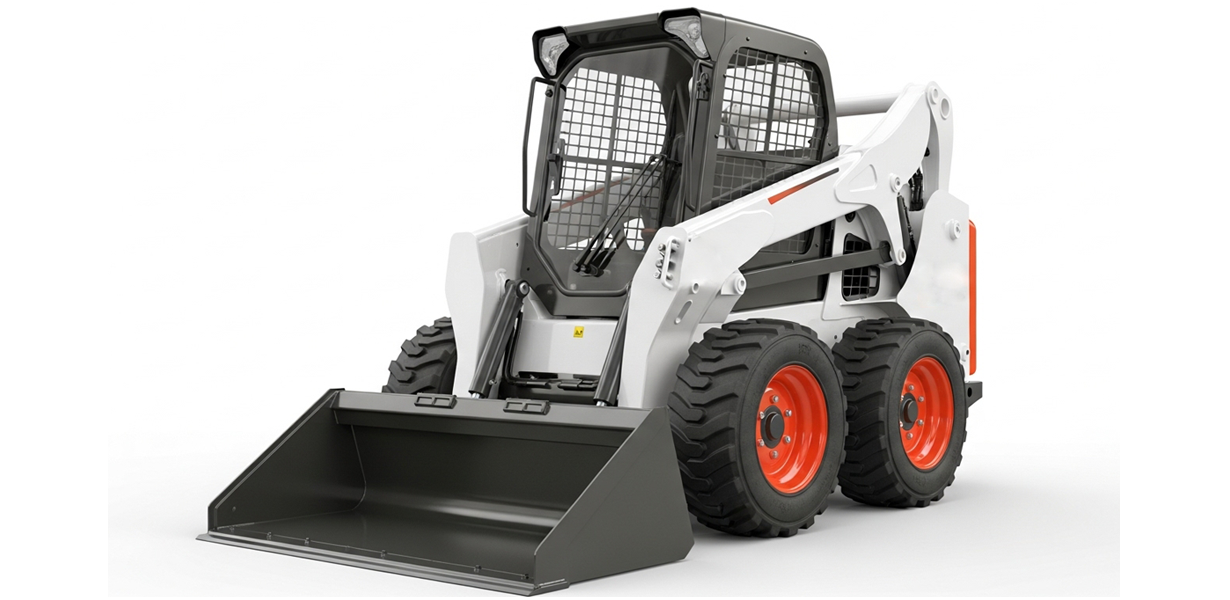

    skid loader 1

  • ENGINE MODEL :

    yanmar/4TNV88

  • NET POWER :

    35.5kW

  • Transport weight:

    2429kg

  • OPERATING WEIGHT:

    2673kg

Project Overview

Industrial-Grade Performance – The Heavy-Duty Compact Excavator

This powerful model combines industrial strength with precision engineering (total width: 1633mm):

  • Power System: Equipped with a Yanmar 4TNV88 diesel engine (35.5kW) featuring water-cooling and 140.4Nm torque for demanding operations.
  • Lifting Capacity: 1,784kg boom power and 1,873kg bucket power with 2.3m unloading height for heavy material handling.
  • Mobility: 10.5km/h travel speed with 1375mm wide tracks for superior stability on challenging terrain.
  • Efficiency: Large 90L fuel tank and 57.2L/min pump capacity ensure continuous productivity.

Ideal for: Road construction, mining support, heavy landscaping, and industrial material handling.

Specification Parameter and Working Environment

Basic Dimensions
Maximum Operating Height 3861mm Driving Roof Height (with AC) 2275mm
Departure Angle 21° Ground Clearance 186mm
Wheelbase 1082mm Length (without bucket) 2657mm
Length (with bucket) 3374mm Maximum Bucket Angle 24°
Unloading Height 2301mm Maximum Bucket Pin Height 3002mm
Loading Distance 767mm Unloading Angle 43°
Bucket Tilt Angle 94° Standard Bucket Width 1727mm
Turning Radius 2048mm Track Width 1375mm
Vehicle Width 1633mm
Engine
Engine Brand yanmar/4TNV88 Fuel Type diesel oil
Cooling Method water-cooling Power 35.5kW
Torque 140.4Nm Number of Cylinders 4
Displacement 2190ml Engine Coolant Propylene glycol/water mixture
Fuel Tank Capacity 90L
Performance
Rated Working Load 894 Boom Lifting Capacity 1784kg
Bucket Lifting Capacity 1873kg Maximum Travel Speed 10.5km/h
Operating Weight 2673kg Transport Weight 2429kg
Hydraulic System Pressure 28MP Maximum Pump Flow 57.2L/min
