byd-8

w

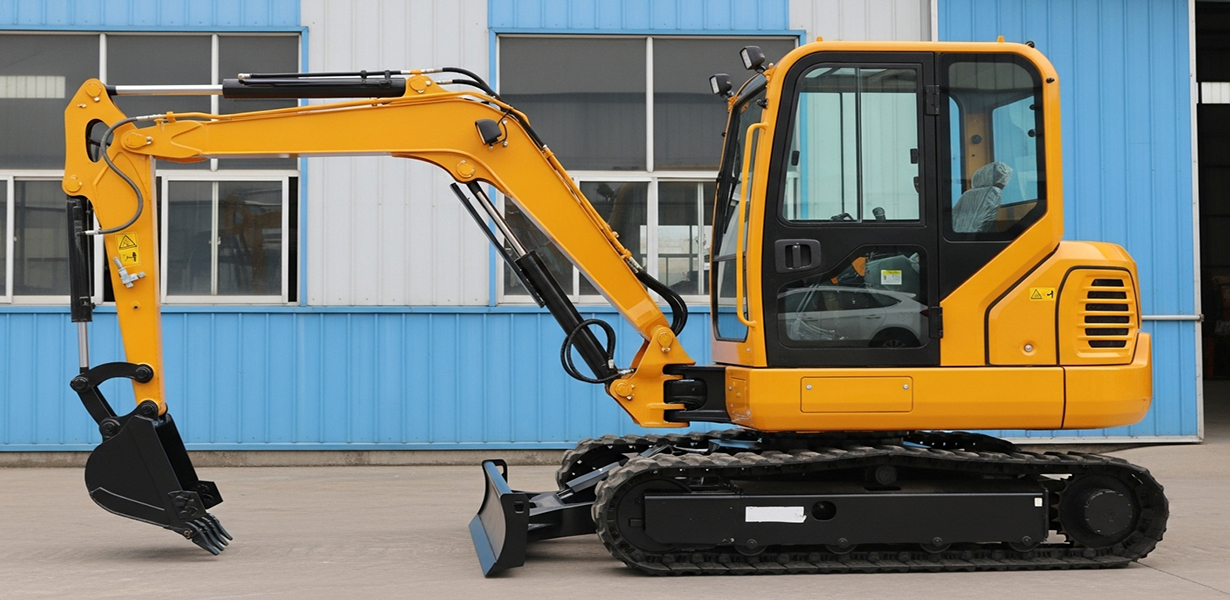

Project Image
  • Product Name :

    byd-8

  • ENGINE MODEL :

    Laidong LJ385-216B

  • NET POWER :

    29KW/2350RPM

  • BUCKET CAPACITY :

    0.05M³

  • OPERATING WEIGHT:

    2500 kgKG

  • TOTAL HEIGHT:

    2300mm mm

  • TOTAL WIDTH:

    1300mmmm

Project Overview

Industrial-Grade Titan – The Ultimate Workhorse

Built for extreme conditions (width: 1300mm):

  • Engine: Laidong LJ385-216B (29KW/2350RPM) – highest in series.
  • Depth: Unmatched 2.5m digging depth.
  • Stability: 230mm tracks with 570mm platform clearance.
  • Capacity: Heavy-duty 0.05m³ bucket for bulk materials.

Ideal for: Industrial demolition, deep foundation, and large-scale earthmoving.

Specification Parameter and Working Environment

Designed for deep foundation work, industrial plant maintenance, and extreme-condition mining support operations.

Name Specification Name Specification
Weight 2500 kg Max Digging Depth 2500mm
Transport Length 3500mm Max Vertical Digging Depth 1740mm
Wooden Case Length 4400mm Max Digging Radius 3100mm
Total Width 1300mm Min Swing Radius 2300mm
Total Height 2300mm Standard Engine Brand Laidong LJ385-216B
Turntable Width 1200mm Emission Standard China National Standard 2(CN-2)
Chassis Total Width 1300mm Engine Power 29KW/2350RPM
Track Width 230mm Telescopic Swing Side swing
Wheelbase 1526mm Standard Bucket Width 500mm
Gauge 1040mm Bucket Volume 0.05
Platform Ground Clearance 570mm Cab Optional
Min Ground Clearance 240mm Air Conditioner Optional
Max Digging Height 3200mm Optional Engines changchai 390Q
Max Dump Height 2450
