byd-7

w

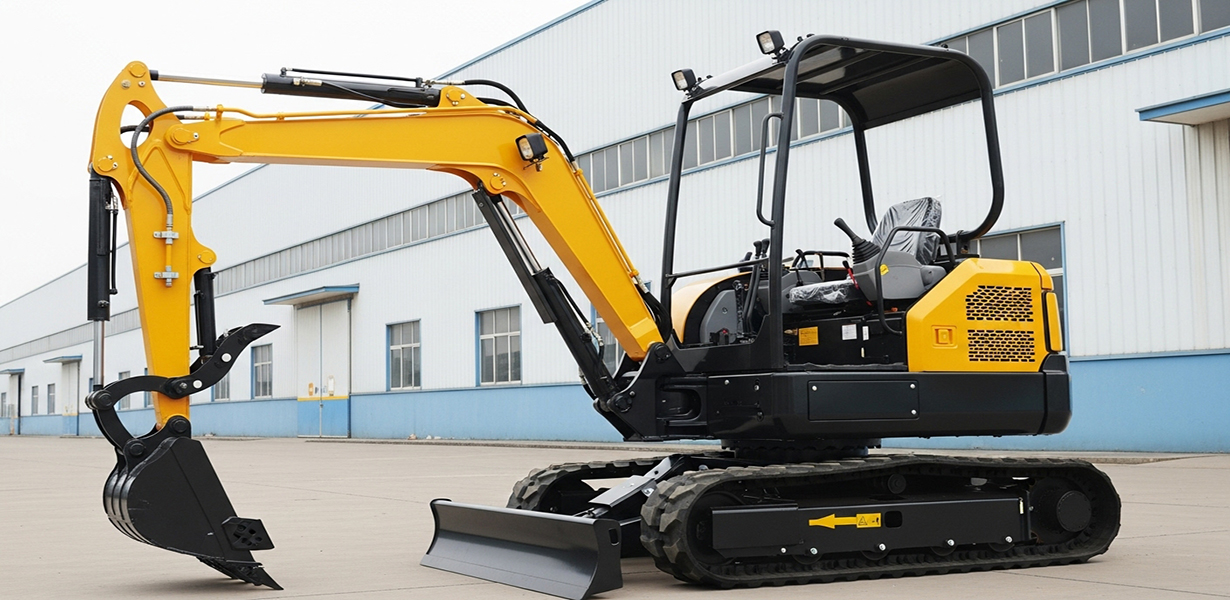

Project Image
  • Product Name :

    byd-7

  • ENGINE MODEL :

    Kubota 902

  • NET POWER :

    11.8KW/2300RPM

  • BUCKET CAPACITY :

    0.04M³

  • OPERATING WEIGHT:

    1880 kgKG

  • TOTAL HEIGHT:

    2405mm mm

  • TOTAL WIDTH:

    990/1330mmmm

Project Overview

Wide-Range Dominator – The Boundary Pusher

Maximized operational range (width: 990/1330mm):

  • Engine: Kubota 902 (11.8KW/2300RPM) with Xinchai 3B11 option.
  • Reach: Industry-leading 3.91m digging radius.
  • Adaptability: Dual-width 760/1070mm gauge for variable terrains.
  • Emission: Certified for EPA/EU/China GB3

Ideal for: Industrial demolition, deep foundation, and large-scale earthmoving.

Specification Parameter and Working Environment

Optimized for large-scale landscaping, quarry material handling, and infrastructure projects requiring extended reach.

Name Specification Name Specification
Weight 1880 kg Max Digging Depth 2270mm
Transport Length 2360mm Max Vertical Digging Depth 1910mm
Wooden Case Length 3560mm Max Digging Radius 3910mm
Total Width 990/1330mm Min Swing Radius 1600mm
Total Height 2405mm Standard Engine Brand Kubota 902
Turntable Width 996mm Emission Standard EPA/CARB TIAL4/EUSTIPEV/China NationalStandard 3(CN-3)
Chassis Total Width 990mm Engine Power 11.8KW/2300RPM
Track Width 230mm Telescopic Swing Side swing/telescopi
Wheelbase 1230mm Standard Bucket Width 500mm
Gauge 760/1070mm Bucket Volume 0.04
Platform Ground Clearance 435mm Cab Optional
Min Ground Clearance 145mm Air Conditioner Optional
Max Digging Height 3535mm Optional Engines xinchai 3B11
Max Dump Height 2445
