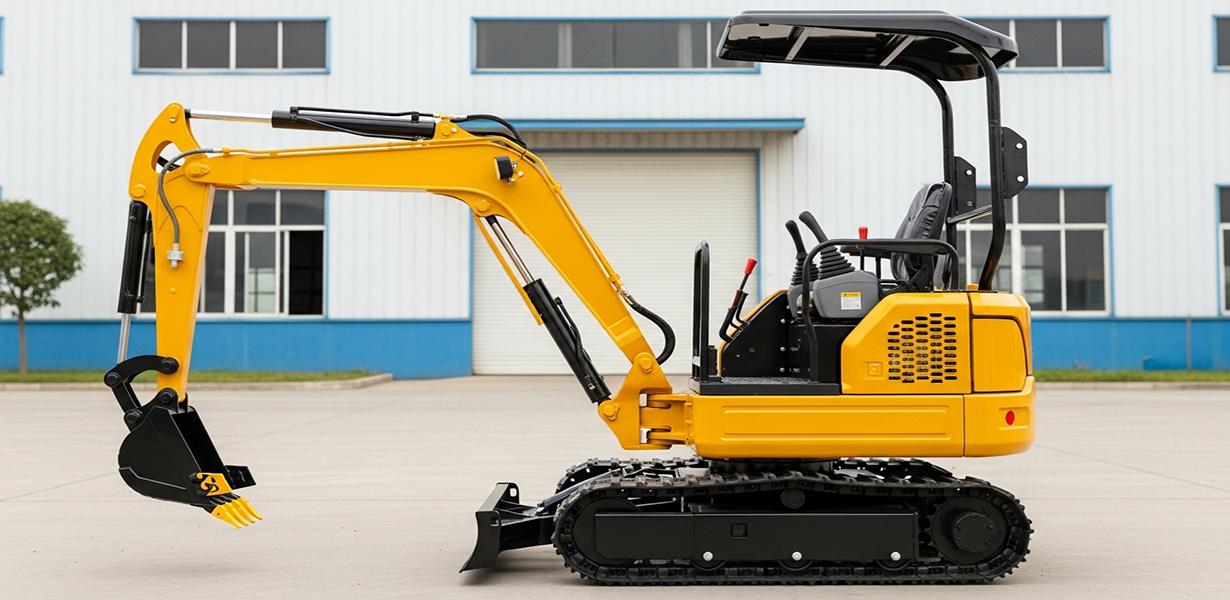

byd-6

w
Project Image
  • Product Name :

    byd-6

  • ENGINE MODEL :

    Changchai 390Q

  • NET POWER :

    20KW/2300RPM

  • BUCKET CAPACITY :

    0.035M³

  • OPERATING WEIGHT:

    1650 kgKG

  • TOTAL HEIGHT:

    2344mm mm

  • TOTAL WIDTH:

    1300mmmm

Project Overview

Multi-Functional Expert – The Adaptive Performer

Versatility redefined (width: 1300mm):

  • Engine: Changchai 390Q (20KW/2300RPM) with Laidong 385 option.
  • Flexibility: Side-swing/telescopic arm for complex angles.
  • Height: 2.88m max digging height for overhead tasks.
  • Comfort: Dual optional cab/AC for all-season operation.

Ideal for: Demolition, warehouse projects, and steep terrain.

Specification Parameter and Working Environment

Engineered for complex demolition projects, warehouse renovations, and steep slope landscaping tasks.

Name Specification Name Specification
Weight 1650 kg Max Digging Depth 2200mm
Transport Length 2600mm Max Vertical Digging Depth 1760mm
Wooden Case Length 3360mm Max Digging Radius 3330mm
Total Width 1300mm Min Swing Radius 1555mm
Total Height 2344mm Standard Engine Brand Changchai 390Q
Turntable Width 1050mm Emission Standard China National Standard 2(CN-2)
Chassis Total Width 1300mm Engine Power 20KW/2300RPM
Track Width 180mm Telescopic Swing Side swing/telescopi
Wheelbase 1082mm Standard Bucket Width 400mm
Gauge 1120mm Bucket Volume 0.035
Platform Ground Clearance 400mm Cab Optional
Min Ground Clearance 145mm Air Conditioner Optional
Max Digging Height 2880mm Optional Engines laidong 385
Max Dump Height 2100
