byd-5

w

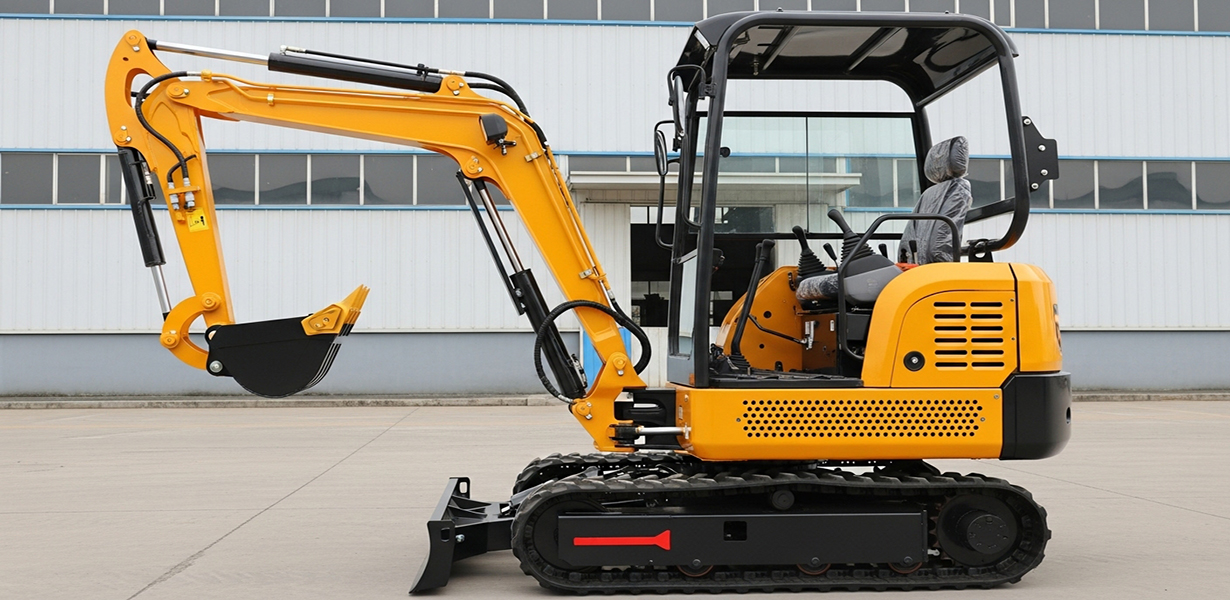

Project Image
  • Product Name :

    byd-5

  • ENGINE MODEL :

    Laidong LL380B-116A

  • NET POWER :

    19KW/2200RPM

  • BUCKET CAPACITY :

    0.3M³

  • OPERATING WEIGHT:

    1500 kgKG

  • TOTAL HEIGHT:

    2215mm mm

  • TOTAL WIDTH:

    1110mmmm

Project Overview

High-Torque Champion – The Powerhouse

Designed for intensive use (width: 1110mm):

  • Engine: Laidong LL380B-116A (19KW/2200RPM) with 0.3m³ bucket.
  • Depth: 2.1m digging and 1.6m vertical capability.
  • Precision: 895.5mm precise gauge for alignment-sensitive jobs.
  • Durability: Reinforced 180mm tracks and 400mm clearance.

Ideal for: Mining support, trenching, and heavy material handling.

Specification Parameter and Working Environment

Ideal for clay-rich farmland, rocky terrain excavation, and heavy material handling in constrained workspaces.

Name Specification Name Specification
Weight 1500 kg Max Digging Depth 2100mm
Transport Length 2420mm Max Vertical Digging Depth 1600mm
Wooden Case Length 2955mm Max Digging Radius 3215mm
Total Width 1110mm Min Swing Radius 1495mm
Total Height 2215mm Standard Engine Brand Laidong LL380B-116A
Turntable Width 940mm Emission Standard China National Standard 2(CN-2)
Chassis Total Width 1110mm Engine Power 19KW/2200RPM
Track Width 180mm Telescopic Swing —
Wheelbase 1082mm Standard Bucket Width 400mm
Gauge 895.5mm Bucket Volume 0.3
Platform Ground Clearance 400mm Cab Optional
Min Ground Clearance 140mm Air Conditioner —
Max Digging Height 2565mm Optional Engines
Max Dump Height 1670
