byd-4

w

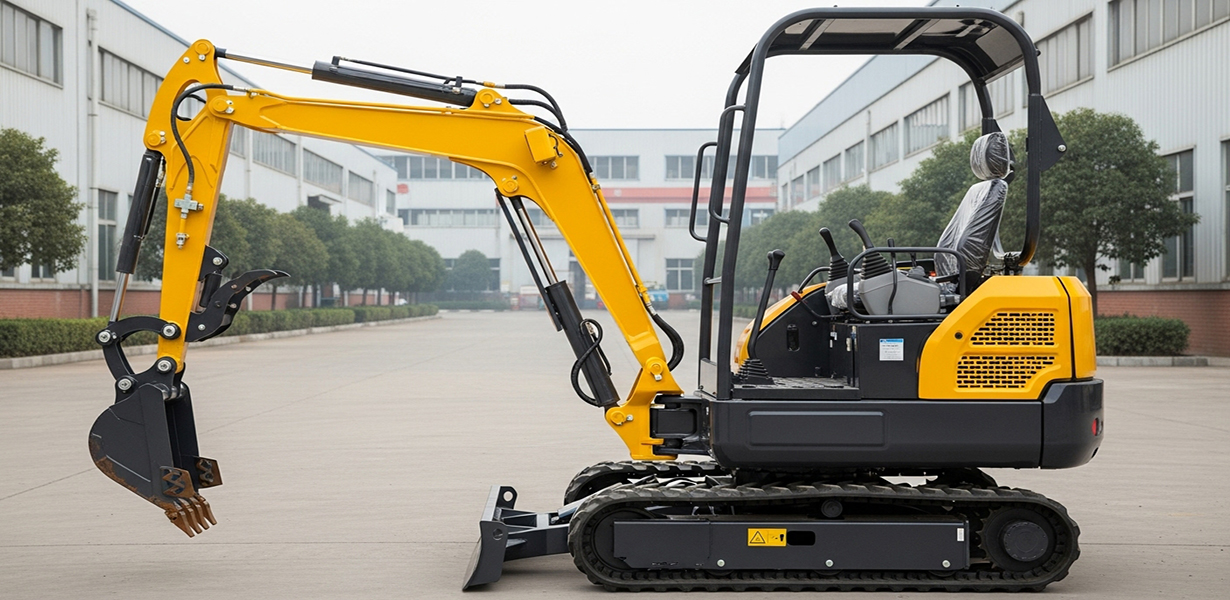

Project Image
  • Product Name :

    byd-4

  • ENGINE MODEL :

    Kubota D722

  • NET POWER :

    10.2KW/2500RPM

  • BUCKET CAPACITY :

    0.023M³

  • OPERATING WEIGHT:

    1680 kgKG

  • TOTAL HEIGHT:

    2240mm mm

  • TOTAL WIDTH:

    1100mmmm

Project Overview

Professional Grade – The Heavy-Duty Partner

Engineered for demanding tasks (width: 1100mm):

  • Engine: Kubota D722 (10.2KW/2500RPM) with global EPA/CARB/EU/GB3 compliance.
  • Performance: 2.1m digging depth and 3.15m reach.
  • Stability: 230mm tracks with 570mm ground clearance.
  • Options: Side-swing and configurable cab/AC.

Ideal for: Construction sites, road maintenance, and forestry work.

Specification Parameter and Working Environment

Built for municipal road repairs, pipeline installations, and confined construction sites needing robust performance.

Name Specification Name Specification
Weight 1680 kg Max Digging Depth 2100mm
Transport Length 2350mm Max Vertical Digging Depth 1585mm
Wooden Case Length 2890mm Max Digging Radius 3150mm
Total Width 1100mm Min Swing Radius 1587mm
Total Height 2240mm Standard Engine Brand Kubota D722
Turntable Width 990mm Emission Standard CN 4/US 4/Euro 5
Chassis Total Width 1100mm Engine Power 10.2KW/2500RPM
Track Width 180mm Telescopic Swing Side swing
Wheelbase 1082mm Standard Bucket Width 400mm
Gauge 895mm Bucket Volume 0.023
Platform Ground Clearance 400mm Cab Optional
Min Ground Clearance 140mm Air Conditioner Optional
Max Digging Height 2690mm Optional Engines
Max Dump Height 1780
