byd-3

w

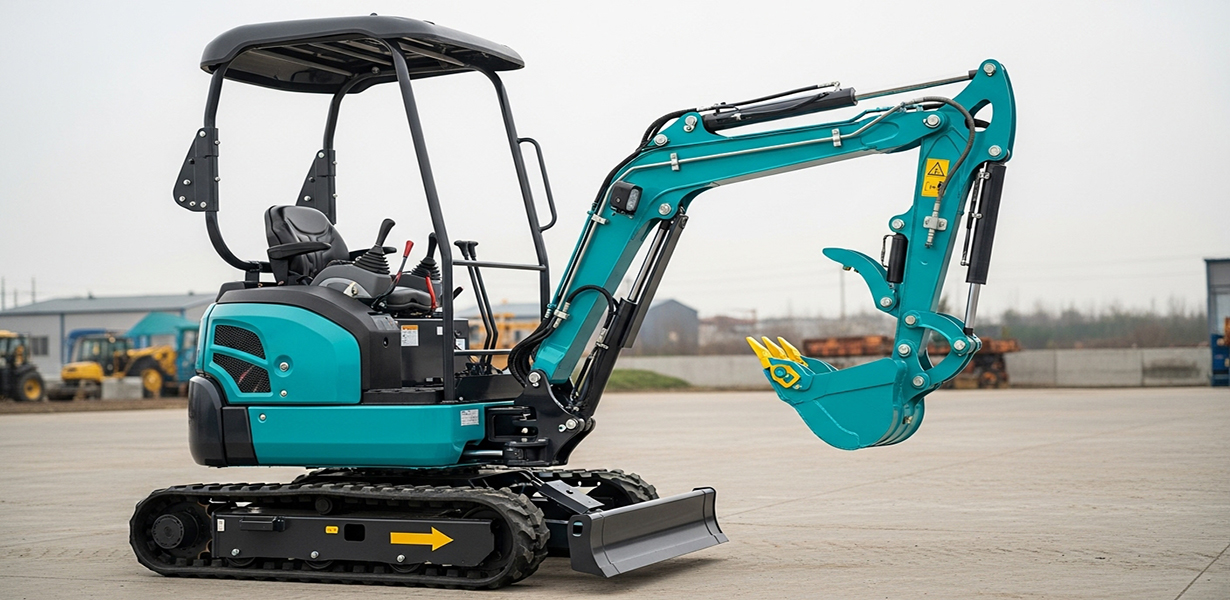

Project Image
  • Product Name :

    byd-3

  • ENGINE MODEL :

    youpu 192F

  • NET POWER :

    5KW/3600RPM

  • BUCKET CAPACITY :

    0.025M³

  • OPERATING WEIGHT:

    900 kgKG

  • TOTAL HEIGHT:

    2000/2175mm mm

  • TOTAL WIDTH:

    925mmmm

Project Overview

Flexible & Powerful – The Job Site Specialist

Optimized for variable terrain (width: 925mm):

  • Power Options: Standard U-Power 192F (5KW) with Changchai/Kipor options.
  • Deep Digging: 1.7m max depth and 1.2m vertical clearance.
  • Features: Telescopic swing and 400mm bucket (0.025m³).
  • Comfort: Optional cab for extended operations.

Ideal for: Landscaping, agricultural ditches, and light industrial use.

Specification Parameter and Working Environment

Perfect for orchard maintenance, vineyard operations, and light industrial facilities requiring precise maneuverability.

Name Specification Name Specification
Weight 900 kg Max Digging Depth 1700mm
Transport Length 2200mm Max Vertical Digging Depth 1200mm
Wooden Case Length 2800mm Max Digging Radius 2900mm
Total Width 925mm Min Swing Radius 1450mm
Total Height 2000/2175mm Standard Engine Brand youpu 192F
Turntable Width 805mm Emission Standard China National Standard 2(CN-2)
Chassis Total Width 925mm Engine Power 5KW/3600RPM
Track Width 180mm Telescopic Swing 可加装
Wheelbase 906mm Standard Bucket Width 400mm
Gauge 742mm Bucket Volume 0.025
Platform Ground Clearance 370mm Cab Optional
Min Ground Clearance 127mm Air Conditioner -
Max Digging Height 2500mm Optional Engines Changchai, Kepu,Bailitong Lithiumbattery, electric motor
Max Dump Height 1700
