byd-2

w
Project Image
  • Product Name :

    byd-2

  • ENGINE MODEL :

    youpu 192F

  • NET POWER :

    5KW/3600RPM

  • BUCKET CAPACITY :

    0.02M³

  • OPERATING WEIGHT:

    700 kgKG

  • TOTAL HEIGHT:

    2000mmmm

  • TOTAL WIDTH:

    720mmmm

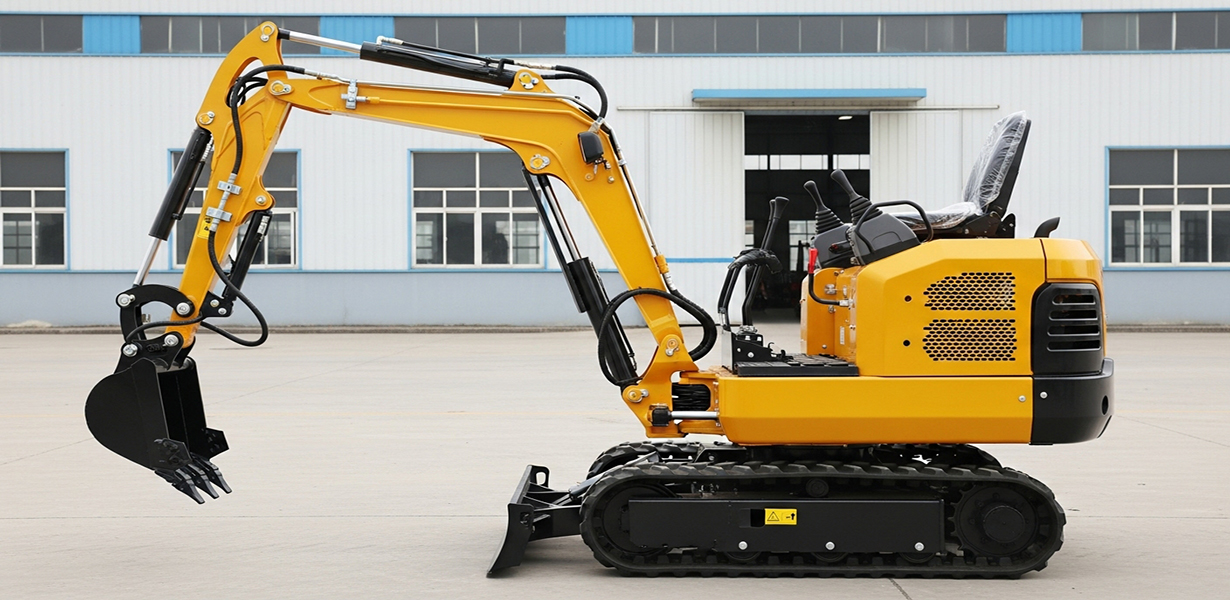

Project Overview

Enhanced Versatility – The Adaptive Workhorse

Upgraded for tougher tasks (total width: 720mm):

  • Power Options: Standard U-Power 192F (5KW/3600RPM) with lithium battery/electric options.
  • Deep Digging: 1.4m max depth and improved 430mm vertical clearance.
  • Reach: Extended 2.33m digging radius for wider coverage.
  • Eco-Friendly: Meets China Phase II with cleaner electric alternatives.

Ideal for: Utility work, rural construction, and drainage projects.

Specification Parameter and Working Environment

This model excels in utility trenching, small farm irrigation systems, and roadside drainage work with its balanced power-to-size ratio.

Name Specification Name Specification
Weight 700 kg Max Digging Depth 1400mm
Transport Length 2500mm Max Vertical Digging Depth 430mm
Wooden Case Length 2700mm Max Digging Radius 2330mm
Total Width 720mm Min Swing Radius 1400mm
Total Height 2000mm Standard Engine Brand youpu 192F
Turntable Width 700mm Emission Standard China National Standard 2(CN-2)
Chassis Total Width 720mm Engine Power 5KW/3600RPM
Track Width 150mm Telescopic Swing -
Wheelbase 860mm Standard Bucket Width 300mm
Gauge 550mm Bucket Volume 0.02
Platform Ground Clearance 350mm Cab -
Min Ground Clearance 100mm Air Conditioner -
Max Digging Height 2800mm Optional Engines Changchai, Kepu,Bailitong Lithiumbattery, electric motor
Max Dump Height 1880
