byd-1

w
Project Image
  • Product Name :

    byd-1

  • ENGINE MODEL :

    youpu 192F

  • NET POWER :

    8KW/3600RPM

  • BUCKET CAPACITY :

    0.02M³

  • OPERATING WEIGHT:

    700 kgKG

  • TOTAL HEIGHT:

    2000mm mm

  • TOTAL WIDTH:

    720mmmm

Project Overview

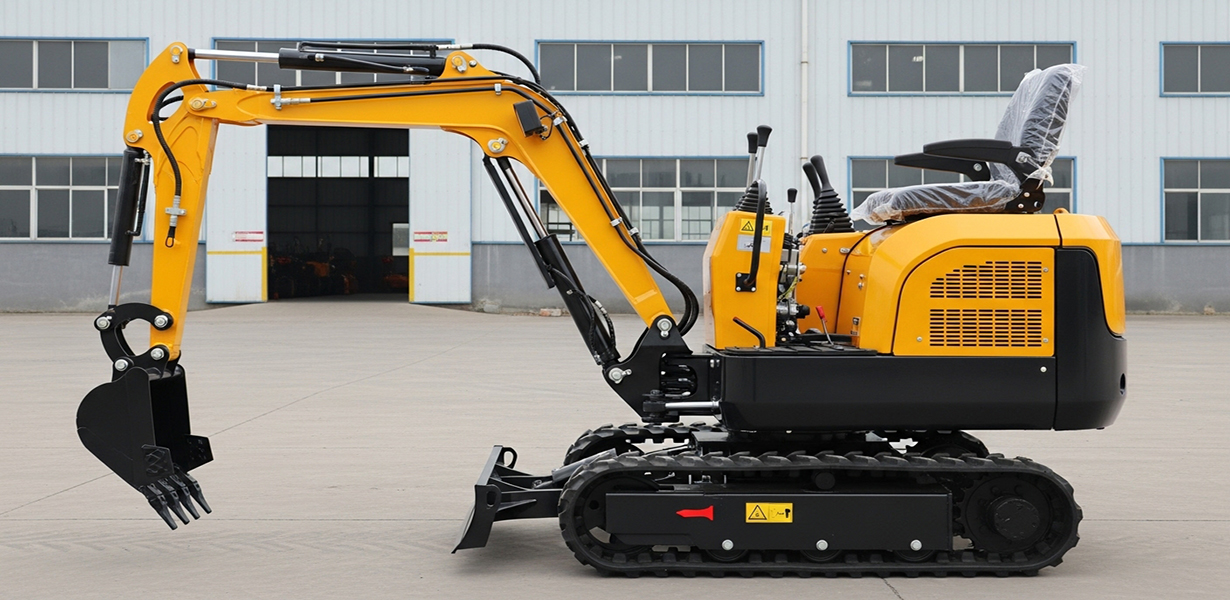

Smarter & Stronger – The Upgraded Mini Excavator

This refined model enhances performance while retaining its compact design (total width: 720mm):

  • Power Options: Features a standard U-Power 192F engine (8KW/3600RPM) with optional Changchai, Kipor, or lithium battery/electric motors for versatile needs.
  • Deep Digging: Max. digging depth of 1.4m and 340mm vertical clearance, ideal for confined spaces.
  • Agility: Tight 1.4m turning radius with 150mm track width ensures stability on rough terrain.
  • Eco-Friendly: Complies with China Phase II emission standards, with zero-emission electric options available.

Ideal for: Urban construction, landscaping, agriculture, and indoor projects.

Specification Parameter and Working Environment

This excavator is designed for tight spaces, urban construction, and light earthwork under various operating conditions.

Name Specification Name Specification
Weight 700 kg Max Digging Depth 1400mm
Transport Length 2500mm Max Vertical Digging Depth 340mm
Wooden Case Length 2700mm Max Digging Radius 2490mm
Total Width 720mm Min Swing Radius 1400mm
Total Height 2000mm Standard Engine Brand youpu 192F
Turntable Width 700mm Emission Standard China National Standard 2(CN-2)
Chassis Total Width 720mm Engine Power 8KW/3600RPM
Track Width 150mm Telescopic Swing -
Wheelbase 860mm Standard Bucket Width 300mm
Gauge 550mm Bucket Volume 0.02
Platform Ground Clearance 350mm Cab -
Min Ground Clearance 100mm Air Conditioner -
Max Digging Height 2800mm Optional Engines Changchai, Kepu,Bailitong Lithiumbattery, electric motor
Max Dump Height 1880
