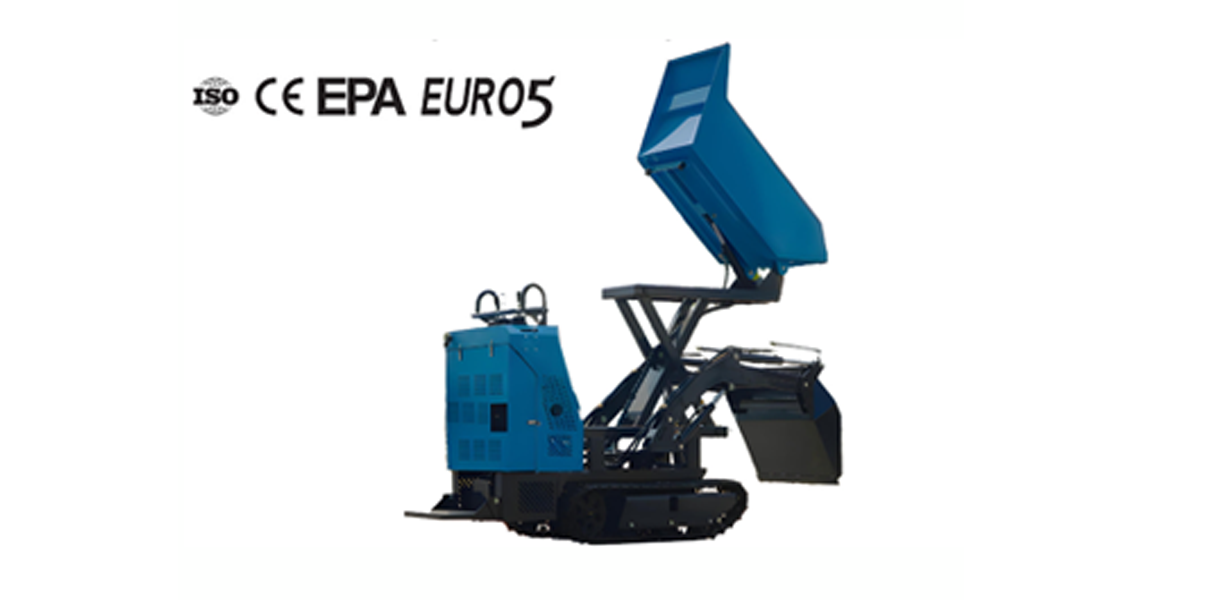

dumper-1

Project Image
  • Product Name :

    dumper-1

  • ENGINE MODEL :

    Ballitong XR2100

  • NET POWER :

    11KW/3600rpm

  • Transport weight:

    800KG

Project Overview

The dumper-1 is equipped with a 19.5HP single-cylinder four-stroke gasoline engine, delivering rated power of 11kW at 3600rpm with 500CC displacement. Engineered for heavy-duty transport operations, it runs on 92# gasoline with exceptional fuel efficiency (≤374g/kW·h) and features a 6.9L large-capacity fuel tank for extended operation.

Specification Parameter and Working Environment

Basic Dimensions
Body Weight 690KG Body Length 1600°900*2000mm
Body Width 900 Body Height 2000
Bucket Length 700°800*220mm Bucket Width 800
Bucket Height 220 Chassis Width 1450°650*400mm
Track Width 700mm Track Grounding Length 180mm
Ground Clearance 1200mm Track Gauge
Power System
Engine Model Ballitong XR2100 Power Type Gasoline single cylinder four stroke 19.5 horsepower
Fuel Type 92#gasoline Rated Power 11KW/3600rpm
Rated Speed 3600rpm Displacement 500CC
Fuel Consumption ≤374g/kw·h Fuel Tank Capacity 6.9L
Engine Oil Capacity 1.2L Hydraulic Oil Capacity 20L
Hydraulic Oil Specification 100
Performance
Max Horizontal Load 1000KG Max Lifting Capacity 800KG
Tipping Method Hydraulic tipping bucket Bucket Dump Angle 100°
Travel Speed Min Turning Radius
Gradeability
